5. Arduino GPIO Voltage and Current

Question.5

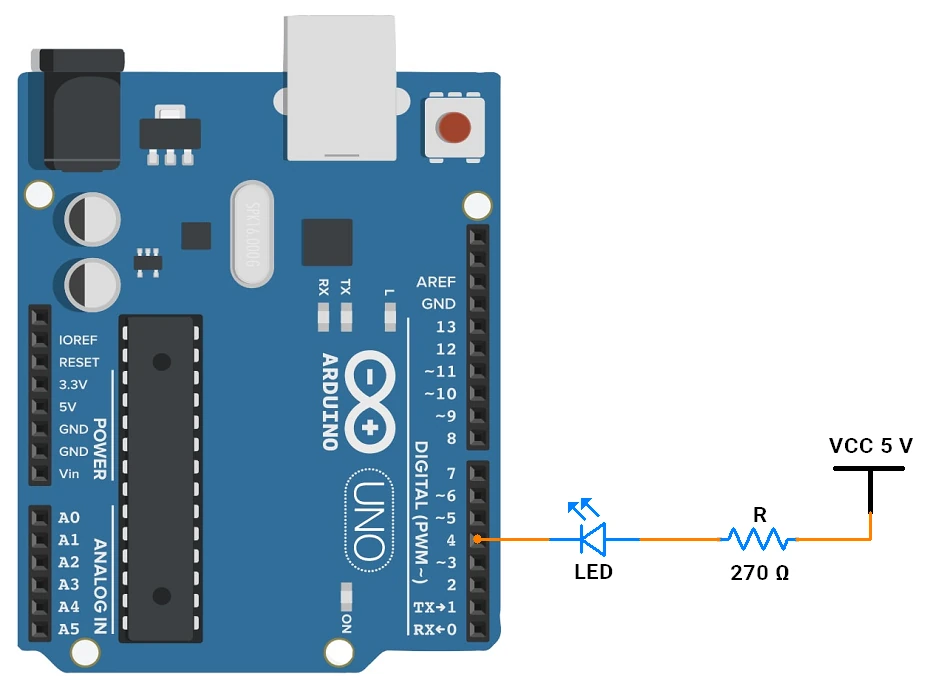

Sarah has built the following circuit. How much current will flow through the LED if the GPIO is Output LOW?

(Note: Consider voltage drop across LED as 1.8 Volt)

Select Answer
