59. UART Hardware and Applications
Question.5

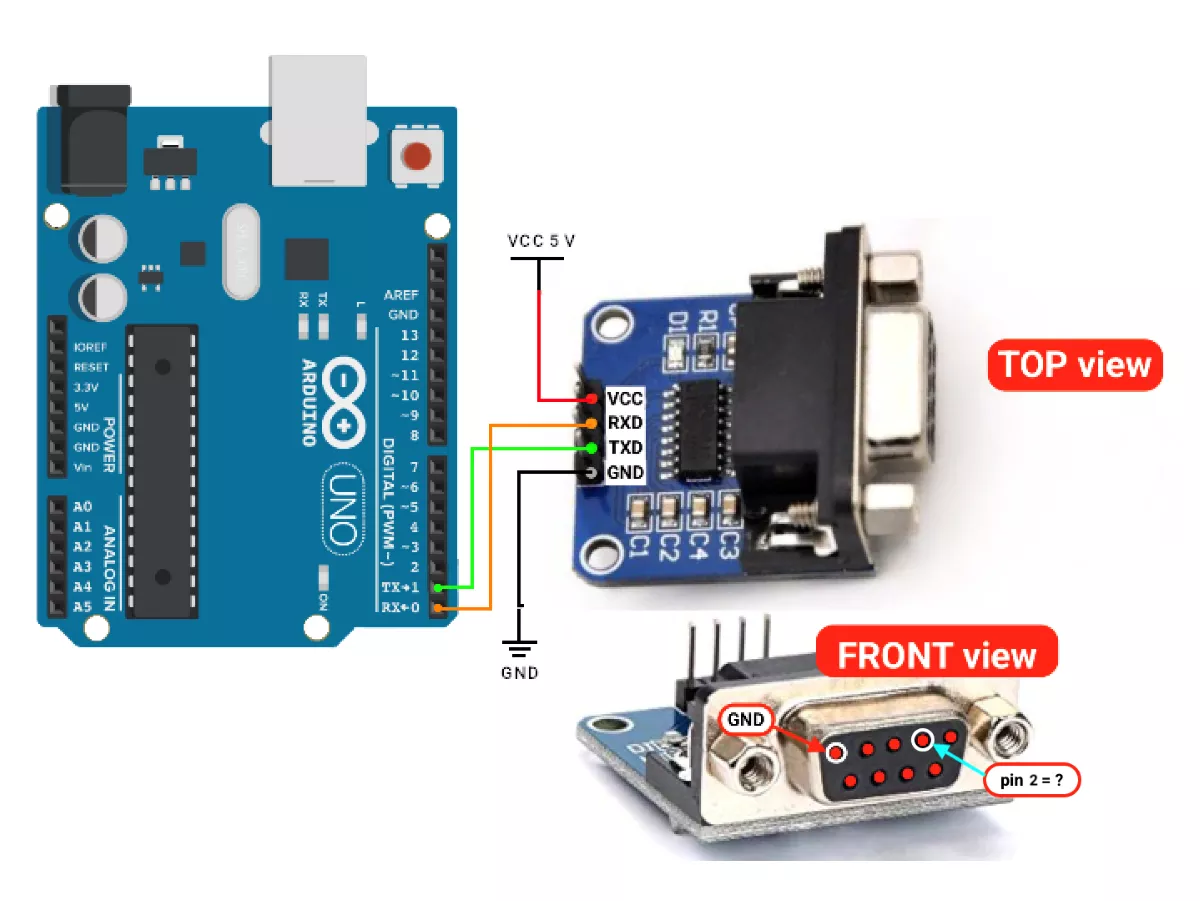

Data is transmitted using RS232 protocol. At this instance of time, bit 1 is being transmitted. What can be the voltage on the TX pin of RS-232 connector (pin 2 of the female connector) ?
